MGEHR Grooving Tool Holder
The advantages of MGEHR grooving tool holder are mainly reflected in the following aspects:
1. High-precision processing: MGEHR grooving tool holder is processed by high-precision CNC machining center to ensure that the blade and the tool are tightly connected, so as to achieve high-precision grooving processing.
2. High-rigidity design: The tool holder is clamped by two faces, which increases the clamping rigidity, so that when grooving, good surface quality and straightness can be achieved even under high feed conditions.
3. High-quality materials: The parts are made of high-quality steel, the screw hardness is 12.9, the material is spring steel, and the whole forging process makes the turning tool have a long service life, better wear resistance, strength and rigidity, and high work efficiency.
4. Heat treatment process: Advanced heat treatment equipment is used to ensure the uniformity of hardness (HRC45-50), which helps to improve the durability and stability of the tool holder.
5. Strong adaptability: MGEHR grooving tool holder can be used for CNC lathes and ordinary lathes, and is matched with CNC blades, suitable for grooving processes of various metal materials.

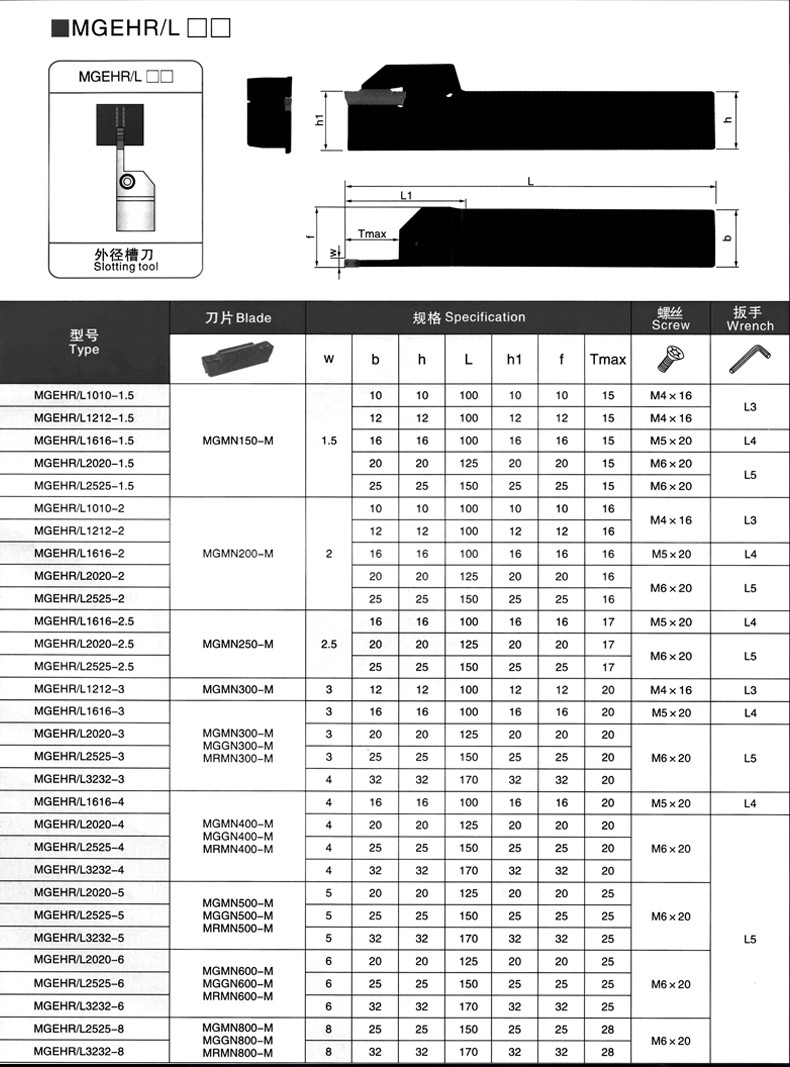

The MGEHR series grooving tool holder is a high-efficiency turning tool designed for high-precision grooving operations. Its parameters are as follows:
1. Product number: The MGEHR series tool holder has different models, such as MGEHR2525-2.5.
2. Functional dimensions:
(1) Functional width (A2): 25.3 mm.
(2) Functional length (A3): 150 mm.
(3) Functional height (A4): 25 mm.
(4) Maximum cutting depth (A8): 16 mm.
3. Overall length (B5): 150 mm.
4. Shank shape (C13): 01 - square shank clamp.
5. Number of effective cutting edges (D11): 1.
6. Cutting direction (F1): R - right.
7. Structural features (H1): S - solid steel, no design features.
8. Cooling lubricant: No cooling lubricant inlet and outlet (H21, H22).
9. Data carrier (J7): No data chip.
10. Blade fixing method: Clamped from the top, no drilling.
11. Blade name: MGMN250-G; MGMN250-M.
12. Shank height and shank width: Both are 25 mm.
These parameters ensure the stability and efficiency of the MGEHR series grooving tool holder when performing high-precision grooving processing on the lathe.
The MGEHR series grooving tool holder has a wide range of applications and is mainly suitable for the following fields:
1. High-precision grooving: The MGEHR series grooving tool holder is designed for high-precision external cylindrical cutting and grooving operations, and is suitable for occasions requiring high processing accuracy.
2. Processing of various metal materials: Suitable for grooving processes of various metal materials, such as steel, cast iron, stainless steel, alloy, etc.
3. CNC lathes and ordinary lathes: The MGEHR series tool holder can be used for CNC lathes and ordinary lathes, and is used in conjunction with CNC blades, and is suitable for a variety of processing needs in modern manufacturing.
4. External cylindrical cutting and grooving: Especially suitable for external cylindrical cutting and grooving, tool holders of different sizes and shapes are provided to meet different processing needs.
5. Internal grooving: In addition to external grooving, the MGEHR series is also suitable for internal grooving, providing solutions for internal grooving.
6. Turning: The MGEHR series grooving tool holder is an indispensable tool in turning, especially in turning operations that require grooving.
7. Manufacturing industry application: As a processing tool in modern manufacturing industry, MGEHR series grooving tool holders are used in many fields such as
mechanical processing, automobile manufacturing, and aviation industry.
